KRATOS-DRAYNZAP
“ELECTRO-OXY-COAGULATION (EOC)”

  • Clean water is basic for living society
  • Water comes originates from Rain/Glaciers
  • Natural sources contaminated by discharge of industrial, domestic & agricultural waste
  • Important to remove pollutants & pathogens from waste water by treatment & rejuvenate sources
  • Traditional method remove by Adsorption, ultrafiltration, coagulation mechanisms
  • These methods are not effective, use chemicals, generate toxics, disposal issue (non-biodegradable).
  • Sewage is man-made – pollutants are added to water- Affect the social life – Hygienic Issues
  • Volume of waste water increased due to industrialization, urbanization, improved living conditions & population growth
  • We help to complete the natural water cycle
  • Increase the resources by proper recycling techniques
  • Preserve the ecological balance (Eco-friendly handling)

  • Electro-Coagulation (EC) is a process that utilizes “sacrificed” anodes to form active coagulants which are used to remove pollutants by precipitation and flotation in-situ.
  • EOC … has the ability to remove contaminants such as emulsified oil, total petroleum hydrocarbons and heavy metals that are generally more difficult to remove by filtration or chemical treatment systems.

    • Electro-Oxy-Coagulation … usingDraynZap …

    DraynZap is process technology for water treatment, whereby using an electric field, contaminants and impurities in industrial and domestic effluents are removed. The DraynZap treatment system represents a major advancement in wastewater treatment whereby a revolutionary electrical-based technology for effectively treating complex waste streams economically and on-site.

    Electrochemical Reactor based Sewage/Effluent Treatment (Ozone) Plant (Electrocoagulation) an electro-chemically ozonated wastewater management solution

    Mechanism or chemical reactions:

    Electro-oxidation: Oxidation of Hydrocarbons & other chemicals by using electrical energy. Electrical energy helps to break the HC bonds & form CO2, H2O, SO2, N2

    HC- + O2 ===== H2O + CO2

    NH+ + O2 ===== N2 + H2O

    H2S + O2 ===== H2O + SO2

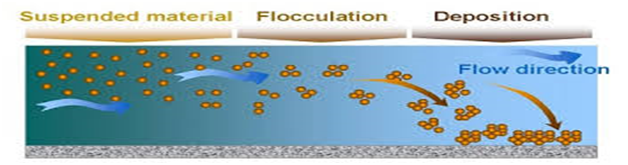

    Electro coagulation: Coagulation is agglomeration of suspended particles to form heavy sludge. Can be done by chemicals. Our product use metallic ions for easier/faster & efficient coagulation. Reaction is non- reversible due to high energy intensity. The air bubbles try to lift the foamy sludge to the top for separation. Settling over period of time form sludge at the bottom.

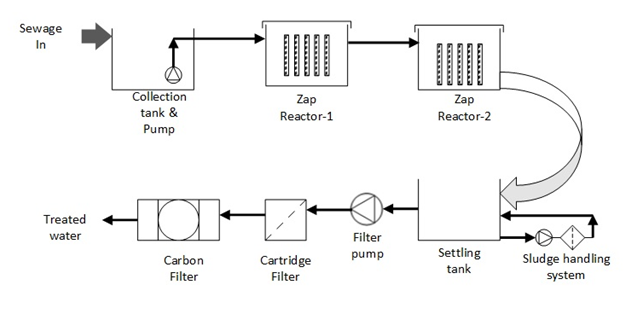

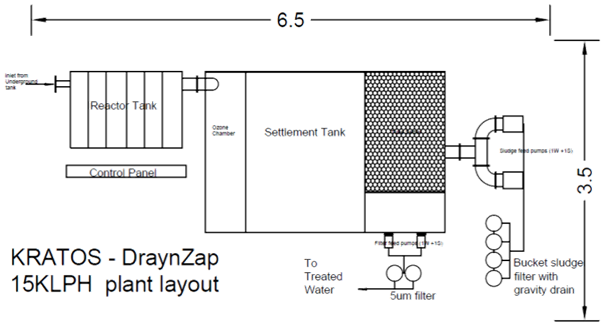

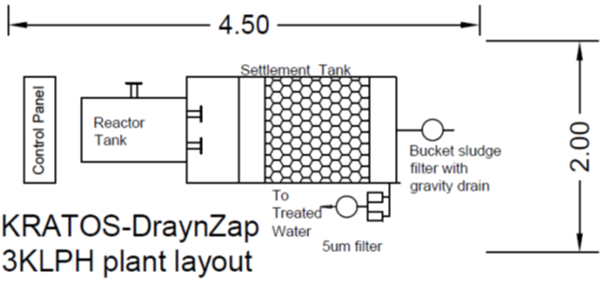

    Simple Flow diagram


    DraynZap

    DraynZap is a continuous flow or batch process Electrochemical Reactor designed to treat sewage water and industrial effluents.

    one of the advanced Electrochemical Reactor technology based techniques is the Electrocoagulation (EC) process.

    Electrocoagulation (EC)

    DraynZap … Electrocoagulation (EC)

    Electrocoagulation (EC) the passing of electric current through water, has proven very effective in the removal of contaminants from water. Miniaturization of the requisite power supplies and enhancing their efficiency has made it one of the most affordable and proficient water treatment processes around the world.

    EC drastically reduces the use of chemical reagents. Thus, apart from reducing operational costs, the process also does away with the extra safeguards required for storing and handling these reagents.

    DraynZap’s – Electrocoagulation (EC) … process technology accepts a wider range of wastewater variants with varied pH levels

    It is less complicated and capable of self-monitoring thus, extensive manual interface is eliminated

    DraynZap is a water treatment process whereby an electric field is applied across plates to remove various contaminants from water. Current is applied to the electrolytic cell plates causing trace amounts of the plate material to be dissolved into the water. The action is similar to adding separation chemicals (polymers) to a chemical treatment system but much less expensive.

    Influent DraynZap in Process Net Result
    Raw Effluent 5 – 20 minutes 30 minutes sttling

    Coagulation – As previously defined, the electrical current and trace dissolved metals from the electrolytic cell plates, cause suspended matter to come together, forming larger particles.

    Flotation – During the reaction in the cell housing, oxygen bubbles are formed and attached to the coagulated matter, causing it to rise to the surface in the separation tank where it is removed and transferred to the sludge holding tank. The air bubble separates from the separated contaminant allowing it to sink to the bottom of the sludge holding tank where it stays until it is properly disposed off as solid waste.

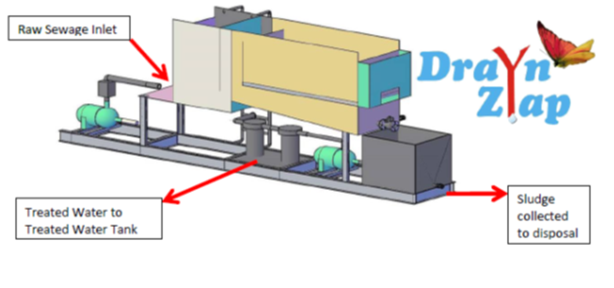

    3D model of the KRATOS - DraynZap EC process system


    DraynZap Advantages:

  • Chemical Free, Non Biological
  • Non-selective process on a wide variety of contaminants
  • Noiseless Operation
  • Custom Designed based on the Volume of waste water
  • Start Stop at users own will, user friendly requiring no specialized skills
  • Small Foot Print, Easily Expandable and Skid Mount Modular in Construction
  • Can be Retrofitted in the existing facility
  • Save Biological reactants, Chemicals and Energy
  • Low Capital , Operating & Maintenance Costs
  • Simple & Easy to operate and maintain
  • Sludge production can be 50-80% LESS voluminous compared to chemical processes
  • Colour Removal up to 95%
  • BOD Removal up to 85%
  • COD Removal up to 80%
